Dunlop Street Bridge Replacement (MTO Project)

Project Type
Roads
Stormwater & Creeks
Project #
EN1306
Status
In Progress
Estimated Completion
Fall 2028

This construction project is being led by the Ontario Ministry of Transportation (MTO) and is the final phase of the replacement of three bridges on Highway 400 at Dunlop Street, Anne Street and Sunnidale Road. During this approximately 4-year project, work will take place to construct a new expanded bridge crossing at Dunlop Street over Highway 400 and expand the interchange to accommodate future widening of Highway 400.

Project Updates

May 12, 2026

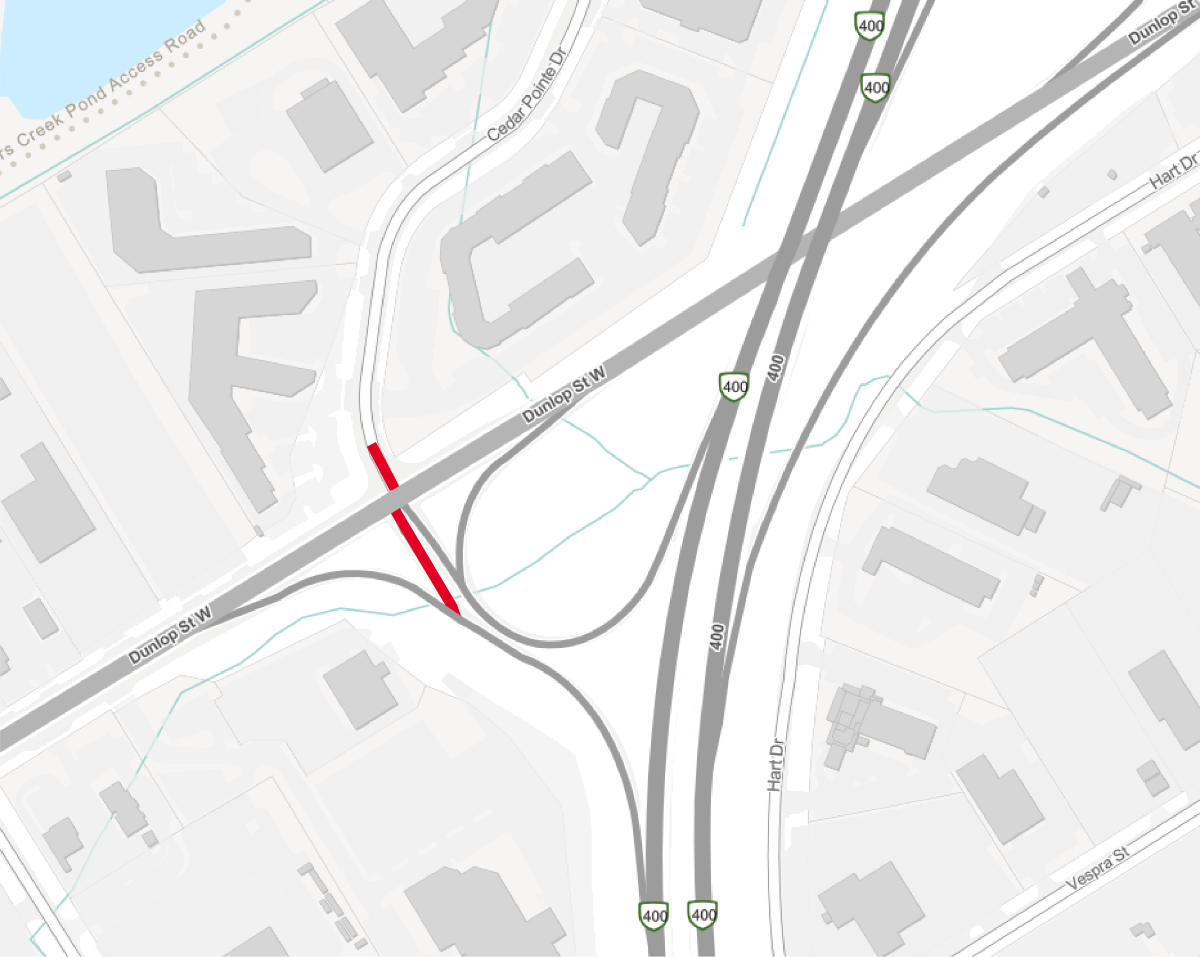

The single lane closures on Dunlop Street West from Cedar Pointe to Sarjeant, both eastbound and westbound, are now expected to begin Tuesday, May 19 at 7am and are expected to be in place until Friday, June 5 at 5pm. The MTO's contractor requires the closures to complete watermain installation on Dunlop and Cedar Pointe.

This work will also require overnight interruptions/closures at the Dunlop/Cedar Pointe and Dunlop/Sarjeant intersections. Further details will be available once confirmed.

Project Details

The work includes:

  • Replacement of the Dunlop Street bridge using staged construction methods to maintain travel on Dunlop Street throughout construction (i.e. new bridge will begin construction south of the existing bridge);
  • Lengthening the new Dunlop Street bridge to accommodate the future widening of Highway 400;
  • Widening the new Dunlop Street bridge to accommodate additional lanes on Dunlop Street as per the approved City of Barrie municipal class environmental assessment (i.e. 6-through lanes and active transportation infrastructure);
  • Realignment of all interchange ramps including intersection improvements;
  • Highway 400 median barrier replacement and drainage improvements;
  • Construction of a new stormwater management dry pond in the northeast quadrant of the bridge;
  • Replacement of two culverts along Dyments Creek;
  • Replacement of one culvert along Bunkers Creek;
  • Pavement resurfacing of Highway 400 from south of Dunlop Street to south of Sunnidale Road; and
  • Construction of a new noise wall along the Highway 400/Dunlop Street northbound on-ramp (i.e. at termination of Henry Street).

Upon completion of construction, Highway 400 will be reinstated back to a 6-lane configuration.

Anticipated Construction Schedule

Construction startMay 2025
Construction completionFall 2028

Traffic Impacts

Throughout the project there will be impacts to Dunlop Street, the interchange ramps, and mainline Highway 400, as well as an extended interruption to the Cedar Pointe Drive access from Dunlop Street. Notice of future traffic interruptions will be posted to this webpage.

More information can be found on the MTO Project Website.

Aerial view of construction on a new ramp
Progress on the interchange east of Hwy 400 including the new northbound on-ramp and noise wall (September 2025)

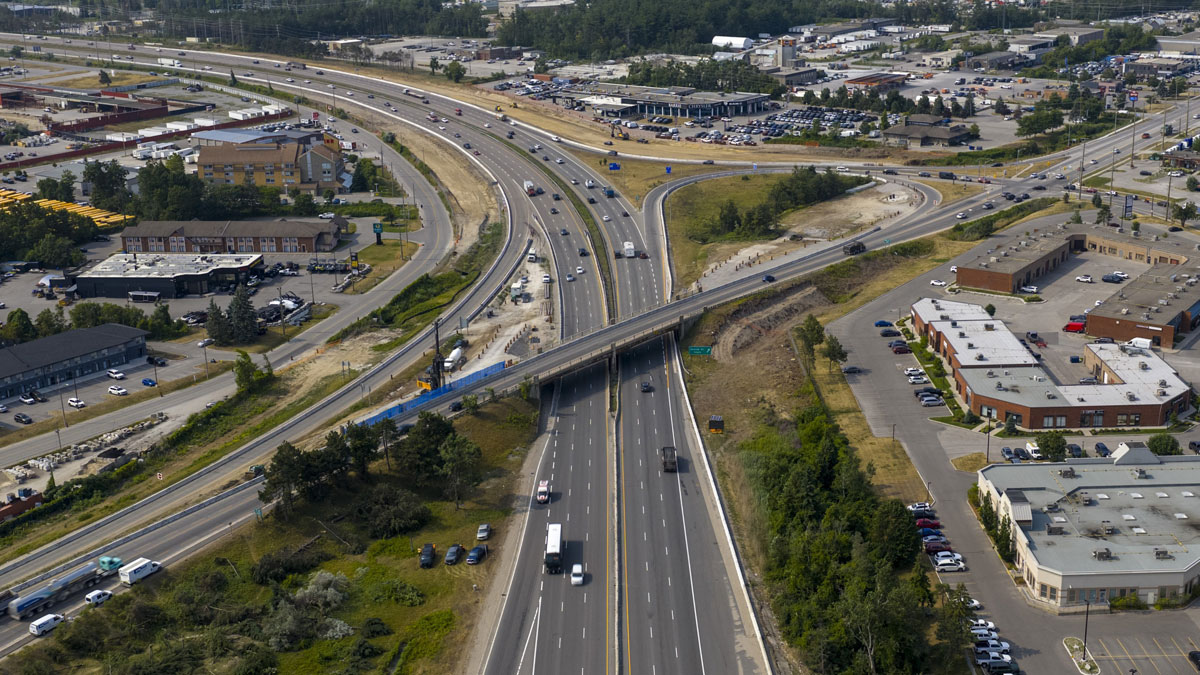

Aerial view of the Dunlop Street bridge
Work progressing (August 2025)
New Dunlop Street bridge and Highway 400 lane configuration
